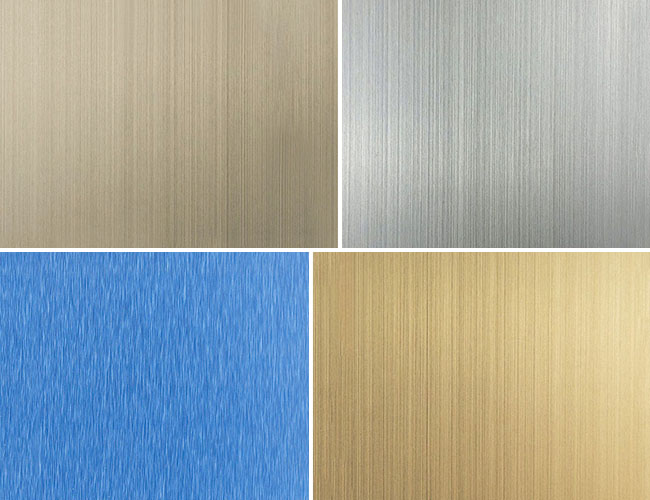

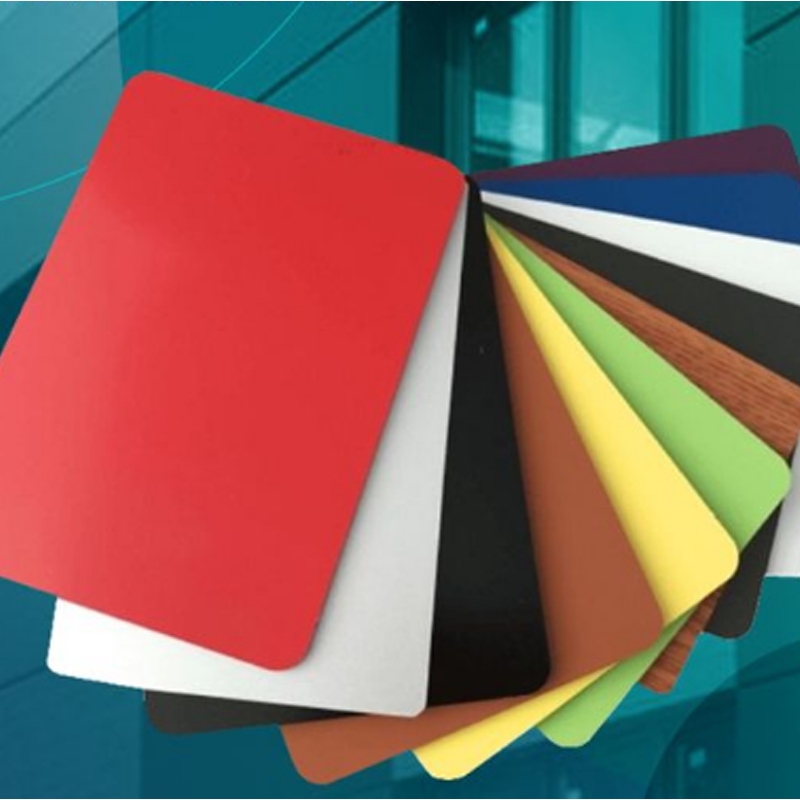

Painted Aluminum Sheets

Painted aluminum sheet is a new type of material. The surface is coated with a layer of fluorocarbon paint or polyester paint, which makes aluminum sheet have the advantages of antibacterial, high corrosion resistance, fingerprint resistance, anti-static, scratch resistance, etc.
Painted aluminum sheets are versatile metal products that provide long-lasting and low-maintenance performance. Typically intended for sheeting enclosed trailers, these sheets have a wide variety of uses ranging from sign making to motorsports.Haomei aluminium is ready to be your reliable provider of painted aluminum sheets:

Painted aluminium sheet is a result of a high tech process that improves aluminium performances. For this reason haomei aluminium provides painted aluminium sheets for every sector including Building and Interior Design Industry. Thanks to its excellent aesthetic impact, painted aluminium is used for different uses, as covering, roofs, isolation panels, air conducts and rolling shutters. We guarantee an extreme durability in outdoor conditions as well as indoors.

Alloy 3003 Painted Aluminum

Painted Aluminum Sheet alloy 3003 is a medium strength alloy with very good resistance to atmospheric corrosion and very good weldability and good cold formability. It has better mechanical properties, especially at higher temperatures than 1000 series alloys.

Room temperature mechanical properties of substrate:

Product	Painted Aluminum Sheet				Contract No.				Lot No.
Dimension (mm)	0.2-1.6				Alloy		3003		Piece Count
Techuique Standard					GB/T3190--1996/EN				Weight(kg)
Chemical Composition(%)
	Si	Fe	Cu	Mn	Mg	Cr	Ni	Zn	Ti	Others		Al
Standard	0.6	0.7	0.05-0.2	1.0-1.5	-	-	-	0.1	-	0.15		Remain
Notice:Aluminum foil not contains Pb、As and other Virose elements
Mechanical Property
Temper	Thickness		Tensile Strength（Mpa）			Strength(Mpa)			Elongation%		Cup Bulge
H18	0.2-0.5		185			165			1		-
	0.51-0.8								2		-
	0.81-1.3								3		-
	1.31-1.6								4		-
H16,H26	0.2-0.3		165-205			145			1		-
	0.31-0.5								2		-
	0.51-0.8								3		-
	0.81-1.3								3		-
	1.31-1.6								4		-
H14,H24	0.2-0.3		140-180			-			1		-
	0.31-0.5					-			2		-
	0.51-0.8					-			3		-
	0.81-1.3					120			4		-
	1.31-1.6					120			5		-
H12,H22	0.2-0.3		120-155			-			2		-
	0.31-0.5					-			3		-
	0.51-0.8					-			4		-
	0.81-1.3					85			5		-
	1.31-1.6					85			6		-

Alloy 3105 Painted Aluminum

Painted aluminum sheet metal offers a unique combination of durability, aesthetics, and formability. This lightweight material finds itself in a wide range of applications, from building facades to household appliances. 3105 painted aluminum sheets are one of the representatives.
Painted Aluminum Sheet – Series 3105-H14 is a corrosion-resistant aluminum alloy with a durable painted finish, used for construction, transportation, and consumer goods applications, such as building structures, truck bodies, and cooking utensils. It offers excellent formability, weldability, and weather resistance.

Application:

Construction, transportation, and consumer goods applications.

Standards:

ASTM B209, AMS QQ-A-250/10

Common Sizes:

– Thickness: 0.016 inch – 0.25 inch (0.4 mm – 6.4 mm)
– Width: 48 inches – 144 inches (1219 mm – 3658 mm)
– Length: 96 inches – 240 inches (2438 mm – 6096 mm)

Mechanical Properties:

– Tensile Strength: 35,000 psi (241 MPa)
– Yield Strength: 25,000 psi (172 MPa)
– Elongation at Break: 10%

Chemical Composition:

– Aluminum (Al): 95.5-98.5%
– Silicon (Si): 0.4-0.8%
– Iron (Fe): 0.7% max
– Copper (Cu): 0.2% max
– Manganese (Mn): 0.15% max
– Magnesium (Mg): 0.5-1.5%
– Chromium (Cr): 0.04-0.35%
– Zinc (Zn): 0.25% max
– Titanium (Ti): 0.15% max
